SL-360 Slant CNC Lathe

A new standard in parts machining!

Applications

  • Precision parts
  • Precision nuts
  • Watch parts
  • Hand tools
Specifications
Content Unit SL-360
Travel  Max.Swing Over Bed mm 700
Max.Swinig Over Cross Slide mm 450
Distance Between Centers mm 685
Max. Turning Length mm 600
Max. Turning Diameter mm 450
Max. Bar Diameter mm 75(92)
Spindle Hyd. Chuck Diameter inch 10"(12")
Spindle Nose type A2-8
Bearing Type type NN3028
Spindle Bearing Dia. mm 140
Spindle Speed rpm 2500
Max.Bar Capacity mm ψ74(92)

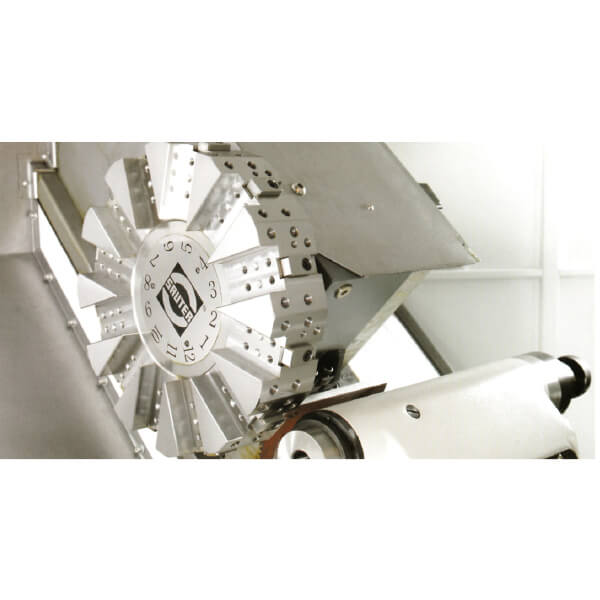

Turret Number of Tools pcs 12
Square Tool Shank Size mm 25
Round Tool Shank Size mm 40
X-Axis Tavel mm 225+40
Rapid Traverse Rate m/min 20
Servo Motor kw 3
Z-Axis Tavel mm 600
Rapid Traverse Rate m/min 20
Servo Motor kw 3
Tailstock Quilt Diameter mm 80
Morse Slideway type MT5
X-Axis Slideway type Box Way
Z-Axis Slideway
Coolant Tank Capacity liter 200
Hydraulic Pump Motor hp 2
Machine Size  cm 265x175x196
Machine Weight kg 5600
*Design and specification are subject to change without prior notice

Standard Equipment

  • Hydraulic Turret
  • Coolant System
  • Chuck Air Blast
  • Fully Enclosed Splash Guard
  • Chuck Open/Close Confirmation
  • Hydraulic Pressure Confirmation
  • Chip Conveyer and Cart
  • Single Point Orientation on Spindle
  • Programmable Tailstock
  • Spindle Rigid Tapping
  • Heat Exchanger
  • Tool Box with Tools
  • I.D. & O.D. Tool Holedrs
  • Tool Shim & Splashing Block
  • Leveling Bolts & Pads
  • 1 Year Machine Warranty
  • 2 Years Control Warranty

Optional Equipment

  • Auto Door
  • Over Load
  • Oil Mist Collector System
  • Coolant through ball screws on 2 axis
  • Bar feeder
  • Auto Length Measuring Tool-setter
  • Hydraulic Power Unit Cooling System
  • Air-conditional Heat Exchanger
  • Cutting Fluid Cooling Device
  • 20 bar High Pressure Coolant System
  • Chuck High/Low Pressure Change
  • Volt Stabilizer
  • Voltage Regulator
  • Oil/Water Separator
  • 2 Axes Linear Scale
  • Parts catcher
  • Servo Turret
  • Parts conveyor
  • Wireless Edge Measuring System
